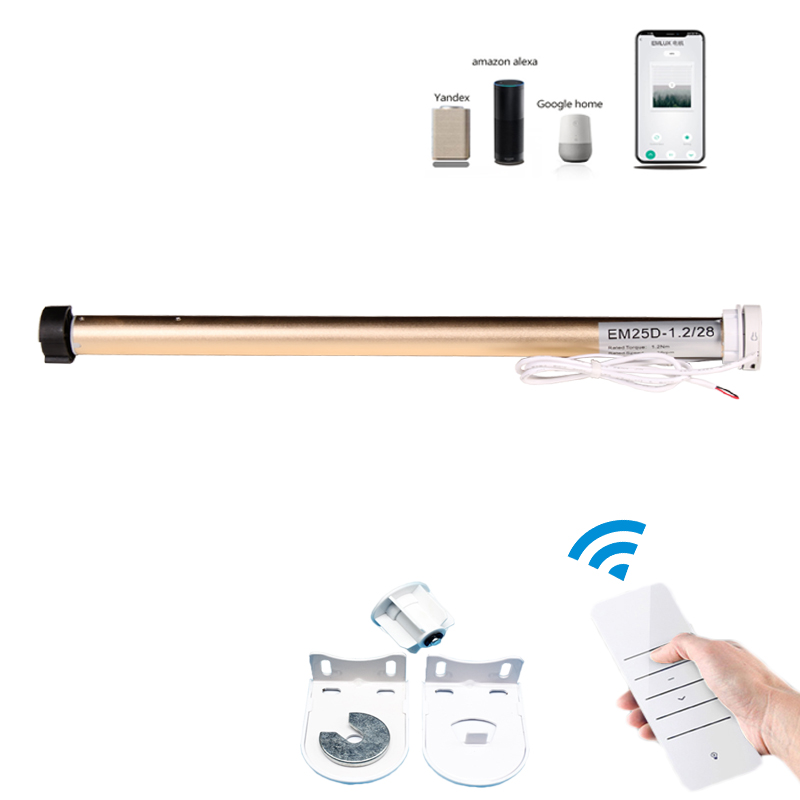

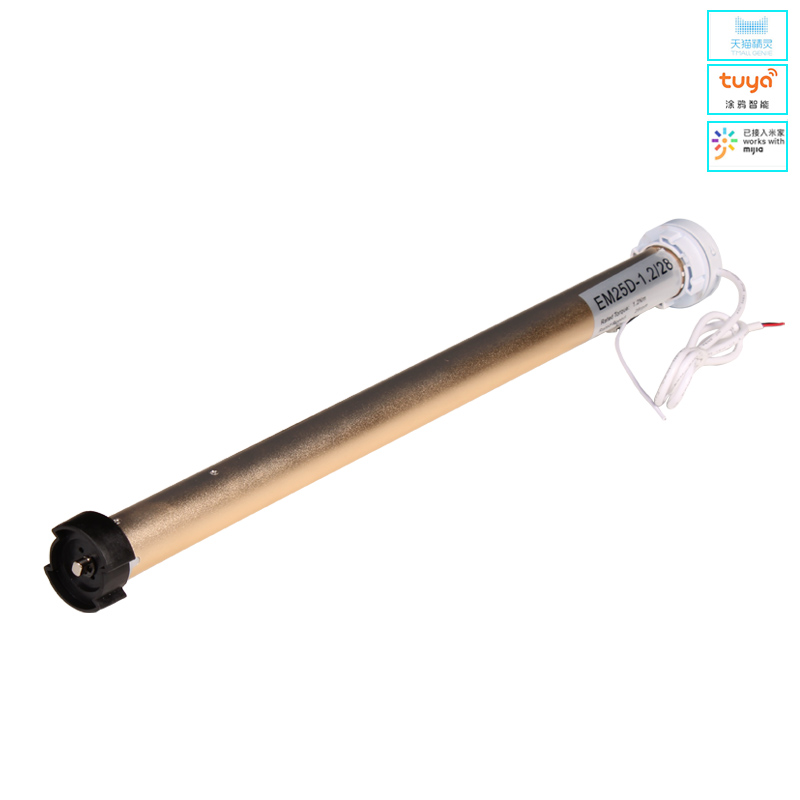

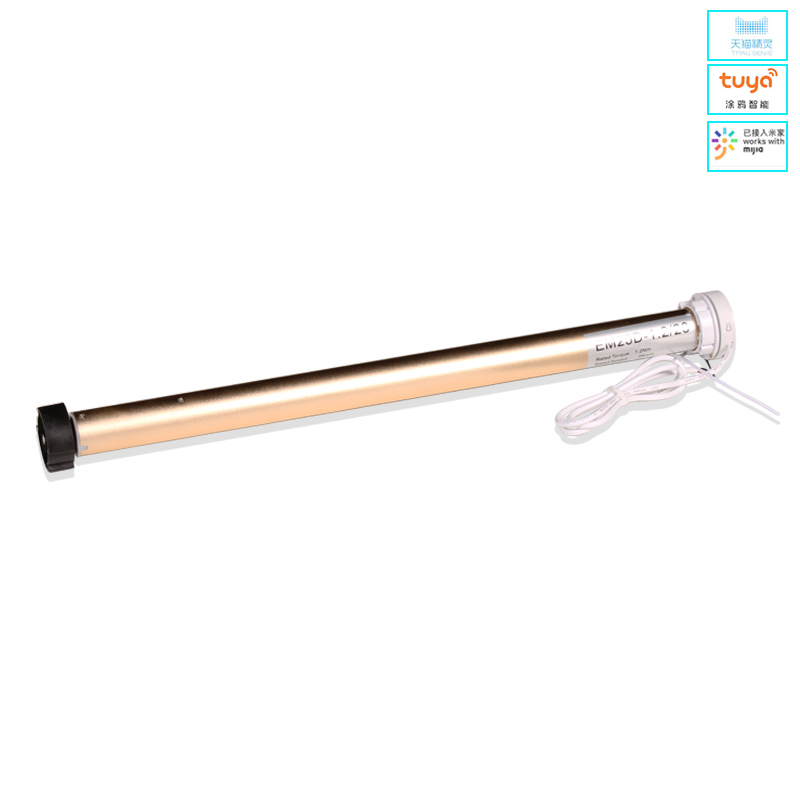

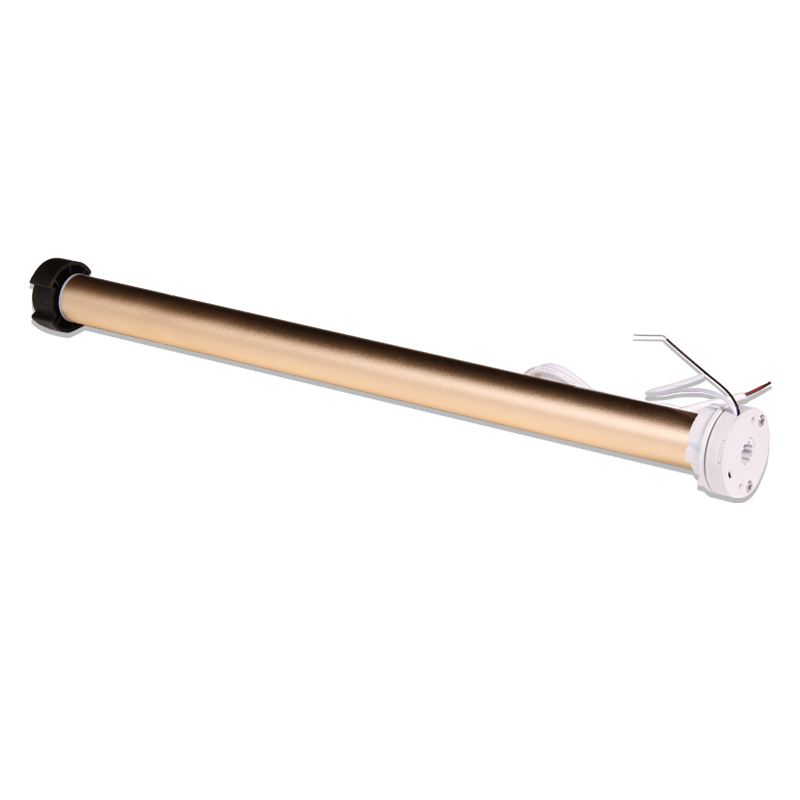

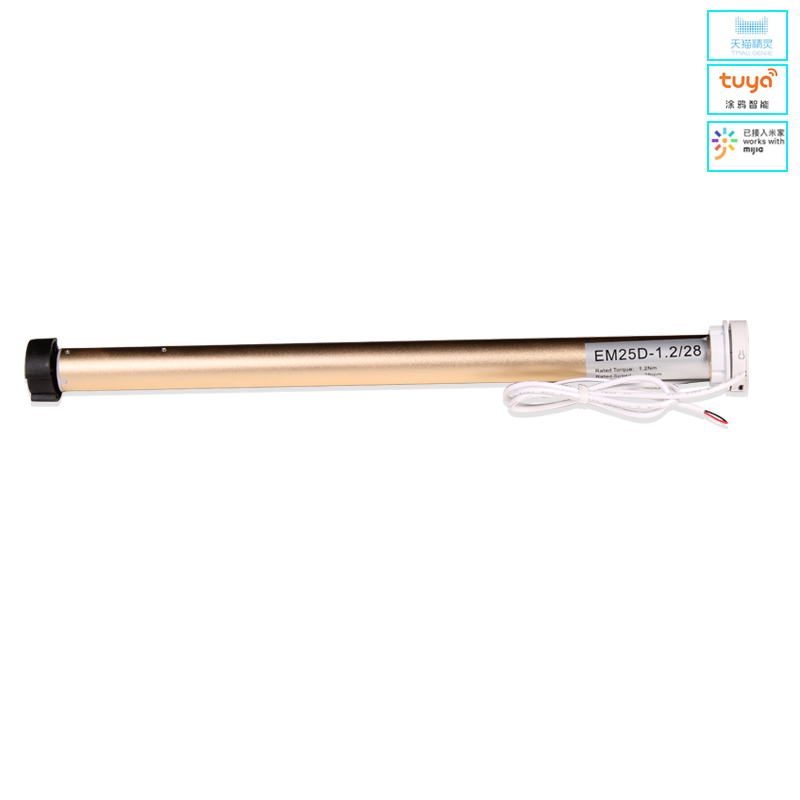

Transform your window treatments with the Emlux silent tubular motor, a cutting-edge smart home solution for roller blinds,
zebra shades, and curtain systems. This ultra-quiet 25mm motor fits standard 38mm tubes and delivers seamless smart home integration with Alexa,
Google Home, Tuya, and Mijia ecosystems. Featuring dual wireless protocols (Zigbee 3.0 & WiFi), RF remote backup, and precision electronic limits,
it's the perfect choice for modern homes and commercial spaces.
Works with: Tuya/Smart Life App, Mijia (Xiaomi), Amazon Alexa, Google Assistant
Dual Connectivity: Choose between Zigbee 3.0 (low power) or WiFi (direct cloud control)
RF433 Backup: Includes wireless remote for fail-safe operation
<25dB Silent Operation – Ideal for bedrooms & offices
High-Torque AC Motor – Smooth movement for blinds up to 20kg
Energy Efficient – Low standby power consumption
Electronic Limit Setting – No manual calibration needed
3 Custom Presets – Save favorite positions (e.g., 50% open for privacy)
Sun Tracking Mode – Auto-adjusts based on daylight (via Tuya app)
Fits 37-40mm Tubes – Works with roller, zebra, and Shangri-La blinds
Multiple Installations – Ceiling, wall, or built-in mounting
IP44 Rated – Protected against dust and splashes
| Category | Details |
|---|---|
| Motor Type | 25mm Tubular AC Motor |
| Protocols | Zigbee 3.0, WiFi 2.4GHz, RF433.92MHz |
| Smart Platforms | Tuya, Smart Life, Mijia, Alexa, Google Home |
| Load Capacity | Max 20kg (44lbs) |
| Noise Level | <25dB (library-quiet) |
| Power Supply | AC 110-240V (Global Voltage) |
| Certifications | CE, RoHS, FCC, Zigbee 3.0 Certified |
| Warranty | 5 Years (Industry-leading) |
✔ Smart Homes – Automate blinds with voice/app control.
✔ Offices & Hotels – Enhance privacy and energy efficiency.
✔ Retail Spaces – Adjust lighting effortlessly.
✔ DIY Smart Projects – Easy integration with existing systems.
Compact & Lightweight
25mm diameter ideal for discreet integration into curtain rods/blinds.
Aluminum alloy housing ensures durability without bulk.
Smart Control
Compatible with WiFi, RF remotes, and voice assistants (Alexa/Google Home).
Schedule automation via app (Tuya/Smart Life).
High Performance
Torque options: 5Nm–15Nm for light to heavy fabrics.
Speed: Adjustable 10–15 RPM for smooth movement.
Quiet Operation
Noise levels below 35dB, suitable for bedrooms/offices.
Safety & Reliability
IP44 waterproof rating for humid environments.
Overload/overtemperature protection and 50,000+ cycles lifespan.
Voltage: AC 100–240V (global compatibility).
Power: 15W–30W (energy-efficient).
Certifications: CE, RoHS, FCC, CCC.
Working Temp.: -20°C to +60°C.
Residential: Smart curtains, blackout shades.
Commercial: Hotels, offices, hospitals.
DIY Projects: Easy retrofit into existing tracks.
✅ 10+ Years of motor manufacturing expertise.
✅ OEM/ODM support with custom torque/speed options.
✅ 5-year warranty and 24/7 technical service.
