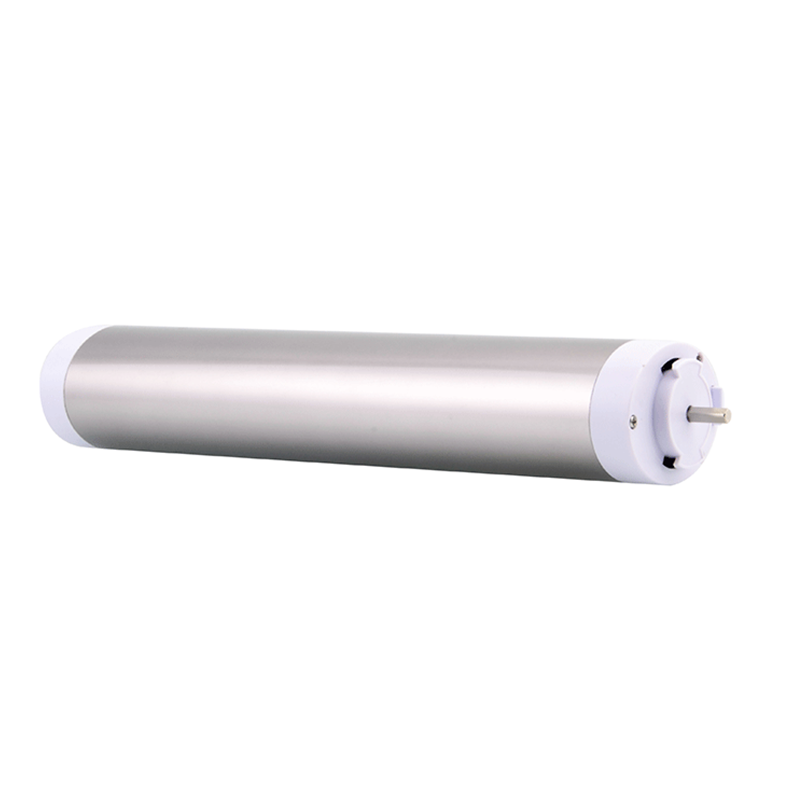

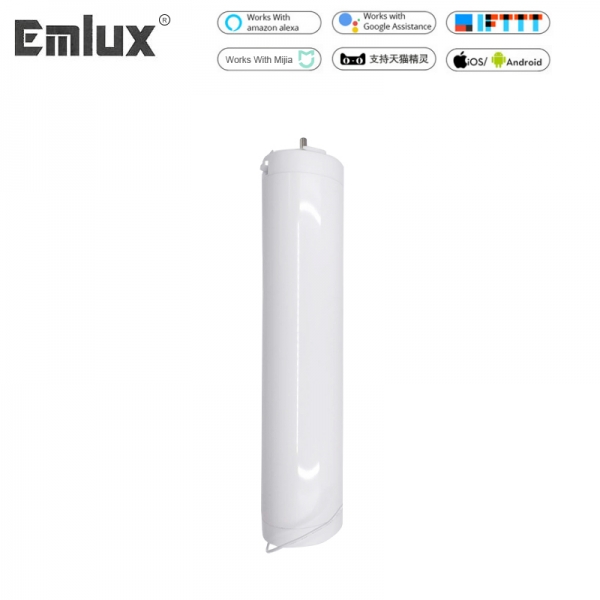

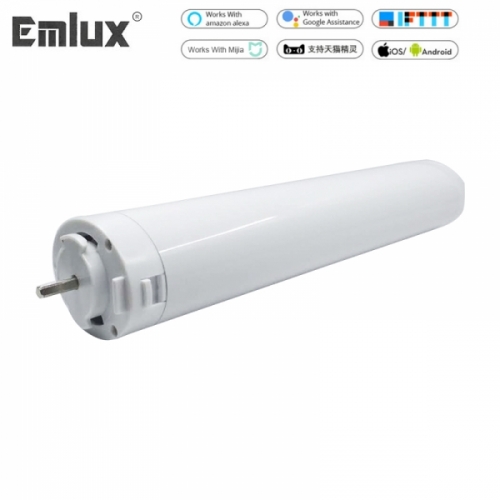

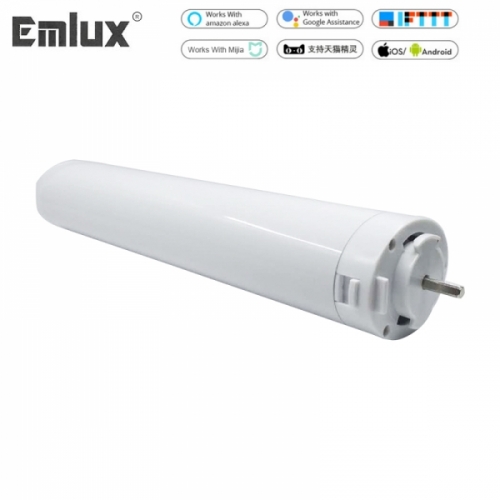

Ewelink Curtain Motor

Features
Built-in Ewelink wifi module/Tuya wifi module/Z-Wave module
App control ,Works with Google assiatant, amazon alexa , IFTTT
Quiet, rechargeable battery motor
Touch control technology, gently pull the curtain to open or close them
Integrated control ensures operation of the curtain manually in case of power failure
Built-in radio receiver, switch and/or network control
Full automatic setting of the limits
Made To Measure Fully Assembled Tracks
Suitable For Straight, Continuous Curve and Bay Windows
Compatible With Home Automation, Smart Systems and Building Management

Quick Details

Type:	Draper curtain motor systems	Rate power:	40W	Rate Voltage:	100-240VAC
Torque:	2Nm	Rate current:	1.5A	Battery :	4800mA
IP Grade:	IP41	Speed:	14cm/s	Size:	305*52*60CM
Place of Origin:	Guangdong China (Mainland)	Brand Name:	Emlux	Model Number:	YS-MT121L
Color:	White	Capacity:	65kg within 4 meter	Price:	low price with good quality

Advanced Electric Curtains Are Here

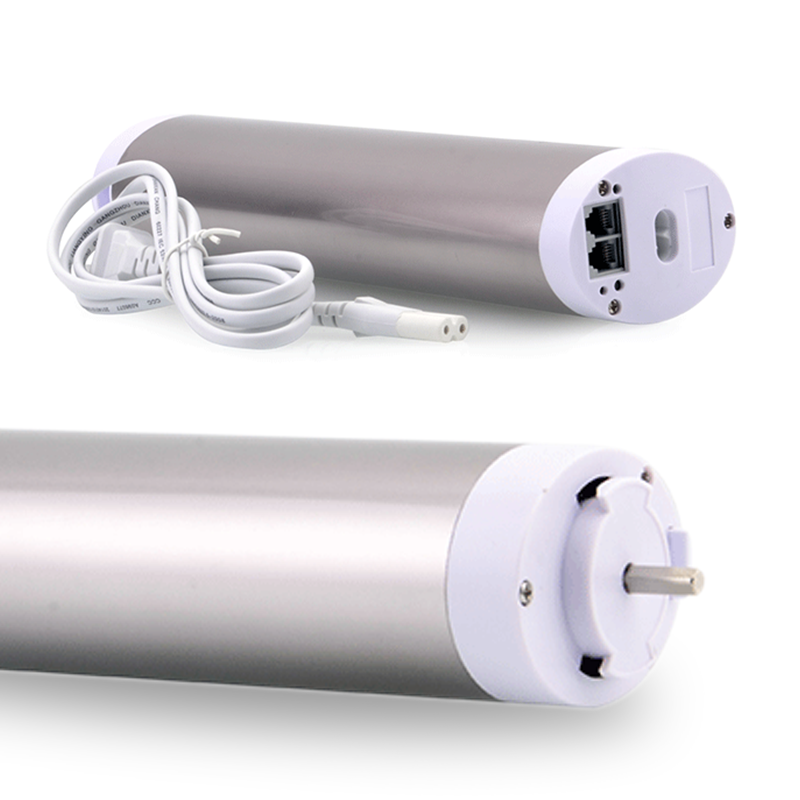

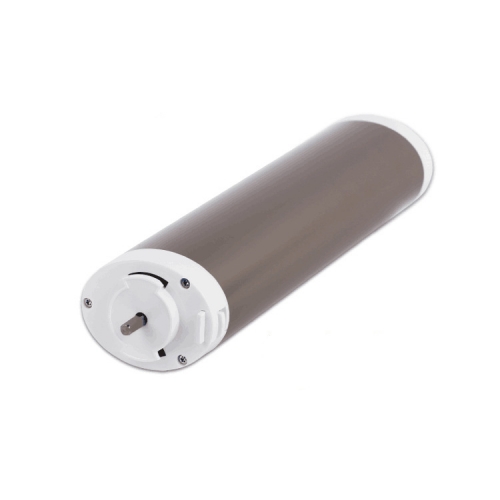

Mains Powered Curtain Motor YS-MT121

The MT121 Motorised Curtain Track System is a long established solution to Sun Protection applications.  It has gathered a lot of pace over the last 5 years since its introduction into the smart home.  Whilst giving the benefit of a cost effective solution to Electric Curtain Track applications it does not compromise on quality or functionality.

with the same PCB, different smart home module such as Ewelink wifi module , tuya wifi/zigbee module,z-wave modules.one motor can change to different smart home soluction.whatever which module , it can work with google assiatant , amazon alexa.

APP control function easy to use timer control you can set the curtains to open and close automatically should you be on holiday, at work or to just block out harmful sunlight that can damage your furnishings.  The timer function also acts as a security feature by simulating occupancy of the property.

As well as radio control the MT121 comes with Touch Control technology, gently pull on the curtain to either open or close them automatically and in case of a power cut the integrated control means you can still operate the curtains as if  a manual system.  The motor is hidden behind the curtain, making it completely unnoticeable.

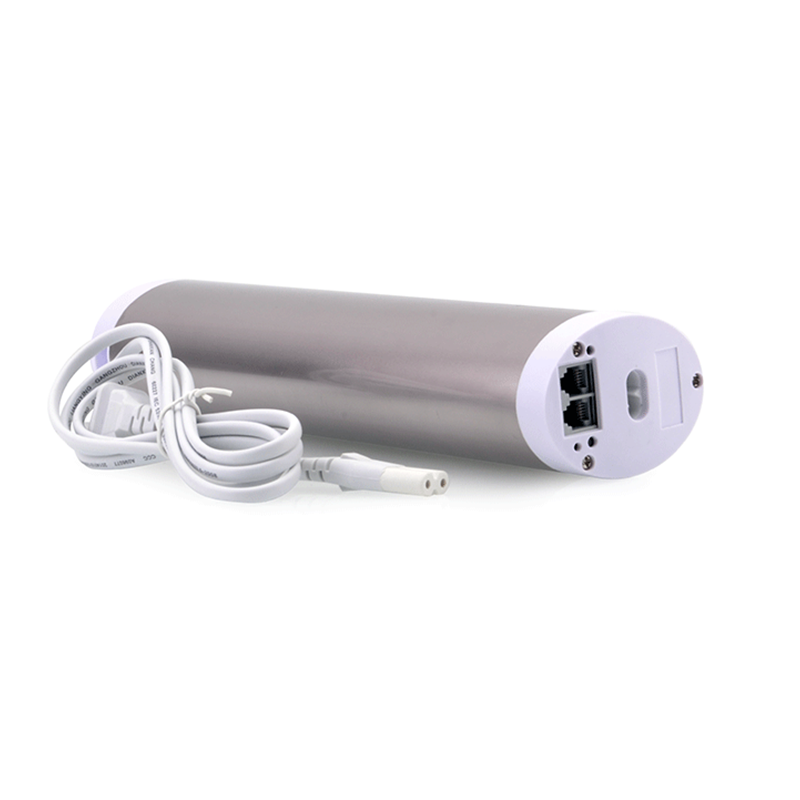

The MT121 can simply plug in to a mains socket in which case the track can be installed without the need of an Electrician.   All you need to do is fix the track into position using the brackets supplied, hang the curtains and plug it in, what could be easier.

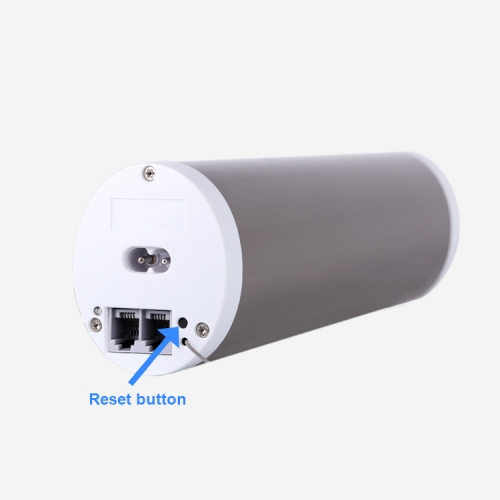

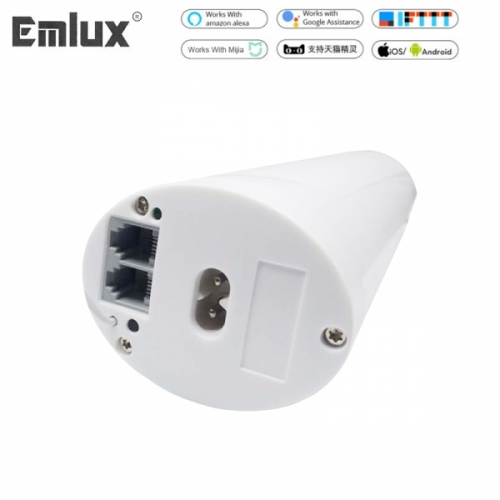

The Radio Controlled Electric Curtain track system has an built in Dry Contact socket (DCT) at the base of the motor which can facilitate most Home Automation or building Management Systems, giving it that little bit more versatility either for the future or right now.  There is a whole range of remote control options from Hand held remote to wall mounted with Timer control options.  All our Electric Curtain Track range can also be set up to work with Smart Phones, Ipad and Laptop’s by incorporating an inexpensive device currently on the market.  The possibilities to control the Electric Curtains are virtually endless, you can even simulate occupancy of the property by pre-setting the Curtain system to open and close.  If you prefer the traditionalist approach we have built in an integrated Touch Control function through the sophisticated software, which basically means if you give the Curtains a little Tug the intelligent motor will pick up the movement and direction and engage the system to fully open or fully close depending in the direction of the Tug.

Every Curtain Track is Custom made to your specific requirements and specification, whether it be for a continuous curve, 7-sided bay or simply a straight track we have it covered.  All shaped Tracks are drawn up and emailed to you for approval before production so you can have peace of mind that everything is in order before it arrives.
